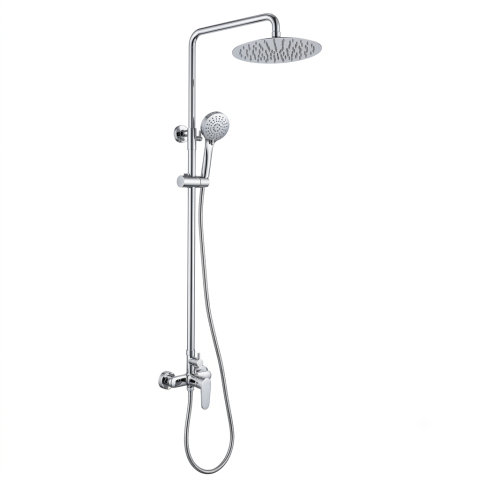

Milo 250mm Round Exposed Shower System with Integrated Mixer – Chrome

Bring an ultra-modern, seamless look to your bathroom with the striking Milo Round Exposed Shower System. Finished in a bright, sophisticated chrome, this all-in-one unit serves as the ultimate modern statement piece. By featuring a complete integrated bottom mixer, it eliminates the need for separate in-wall valves, allowing you to control your temperature and switch between shower functions from one unified, sleek station.

Why You’ll Love It

• All-in-One Integrated Mixer: The exposed bottom mixer houses a sleek single-lever temperature and flow control, plus a built-in diverter to easily switch between the overhead rain shower and the handheld unit.

• Massive 10-Inch Rainfall Head: The generous 250mm round overhead shower provides a luxurious, cascading, full-body wash.

• Telescopic Adjustable Rail: The main shower rail is height-adjustable between 890mm and 1235mm, ensuring the perfect overhead shower height for different users and ceiling heights.

• Versatile Hand Shower: Includes a matching round handheld shower on a smooth sliding bracket, making it easy to adjust the height and angle for targeted washing or easy cleaning.

• Sleek Curved Aesthetic: From the rounded mixer body to the soft curve of the upper shower arm, every component features smooth, cohesive lines for a perfectly balanced modern aesthetic.

Specifications

• Collection: Milo Series

• System Type: Exposed Shower System with Integrated Mixer

• Finish: Chrome

• Profile: Round / Curved

• Rainhead Size: 250mm Diameter

• Inclusions:

  • 1 x Exposed Mixer Body

  • 1 x Adjustable Round Shower Rail

  • 1 x 250mm Round Rainfall Head

  • 1 x Round Handheld Shower & Flexible Hose

Installation Dimensions

• Overall Adjustable Height: 890mm – 1235mm (From the center of the mixer inlets to the top of the upper curved arm)

• Mixer Inlet Centers (Hot to Cold): 150mm

• Top Bracket Mounting Height: 798mm from the center of the mixer body

• Shower Arm Reach: 350mm (From the vertical rail to the center of the rainhead)

• Rail Tube Diameters: 25mm for the lower vertical section and 22mm for the upper curved section

• Wall Plate Covers: 60mm diameter

• Water Connection: Standard G 1/2 inch thread
