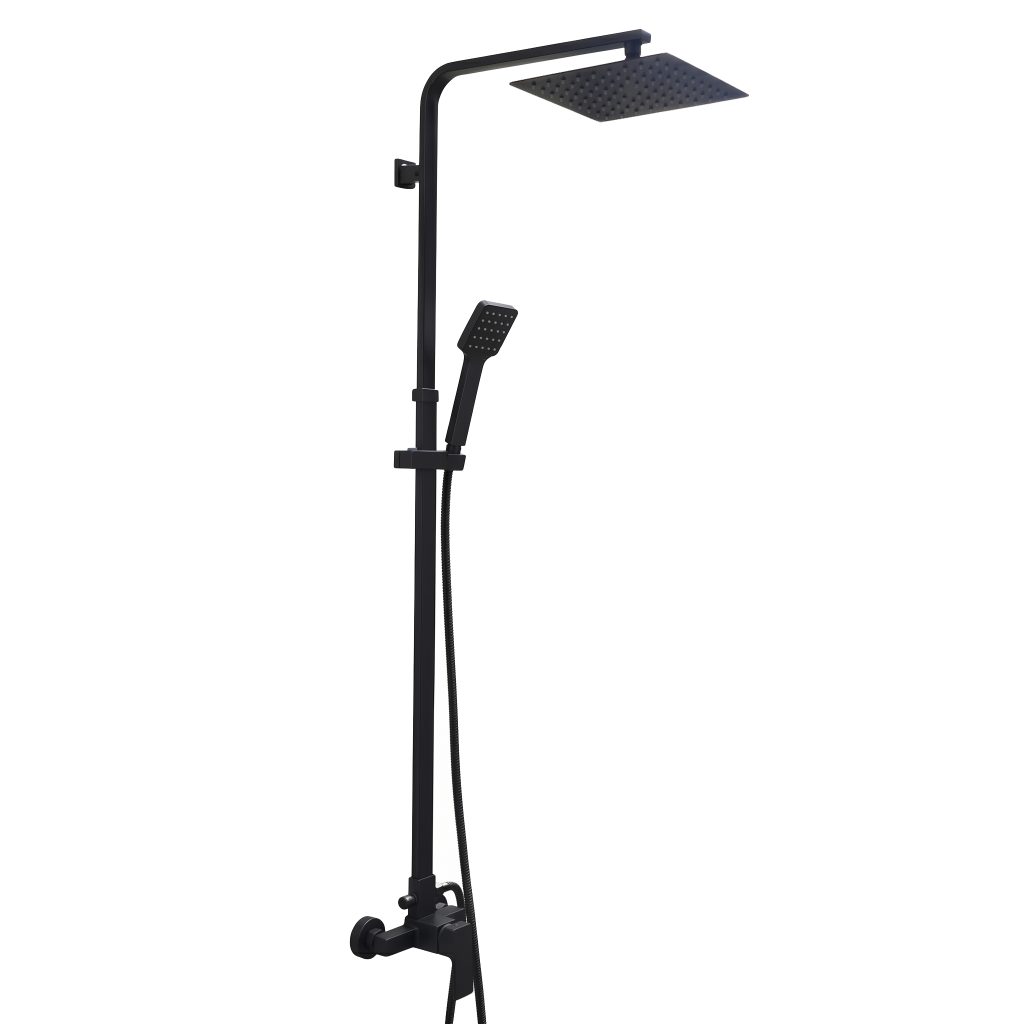

Koda Square Exposed Shower System with Integrated Mixer – Matte Black

Bring an ultra-modern, industrial edge to your bathroom with the striking Koda Square Exposed Shower System. Finished in a deep, sophisticated matte black, this all-in-one unit is the ultimate statement piece. It eliminates the need for separate in-wall valves by featuring a complete integrated bottom mixer, allowing you to control temperature, flow, and diverter functions all from one sleek, unified station.

Why You’ll Love It

• All-in-One Integrated Mixer: The exposed bottom mixer houses a sleek single-lever temperature and flow control, plus a built-in diverter to seamlessly switch between the overhead rain shower and the handheld unit.
• Telescopic Adjustable Rail: The main shower rail is height-adjustable between 950mm and 1300mm, ensuring the perfect overhead shower height for any bathroom ceiling or user.
• 10-Inch Rainfall Head: The generous 250mm square overhead shower provides a cascading, full-body wash.
• Versatile Hand Shower: Includes a matching square handheld shower on a smooth sliding bracket, making it easy to adjust the height and angle for targeted washing or easy cleaning.
• Bold Geometric Design: From the shower heads to the mixer and wall brackets, every component features sharp, architectural square lines for a cohesive, designer-inspired aesthetic.

Specifications

• Collection: Koda Series
• System Type: Exposed Shower System with Integrated Mixer
• Finish: Matte Black
• Profile: Square / Geometric
• Rainhead Size: 250mm x 250mm
• Inclusions: * 1 x Exposed Mixer
  • 1 x Adjustable Square Shower Rail
  • 1 x 250mm Square Rainfall Head
  • 1 x Square Handheld Shower & Flexible Hose

Installation Dimensions

• Overall Adjustable Height: 950mm – 1300mm (From mixer inlets to top of the shower arm)
• Top Bracket Mounting Height: Adjustable between 785mm and 1135mm from the mixer body
• Shower Arm Reach: 357mm (From the vertical rail to the center of the rainhead)
• Mixer Body Width: 180mm
• Mixer Projection (if using spout): 100mm
• Wall Plate Covers: 58mm width
• Rail Profile: 30mm width x 18mm depth
