Koda Square Exposed Shower System with Integrated Mixer – Matte Black

Bring an ultra-modern, industrial edge to your bathroom with the striking Koda Square Exposed Shower System. Finished in a deep, sophisticated matte black, this all-in-one unit is the ultimate statement piece. It eliminates the need for separate in-wall valves by featuring a complete integrated bottom mixer, allowing you to control temperature, flow, and diverter functions all from one sleek, unified station.

Why You’ll Love It

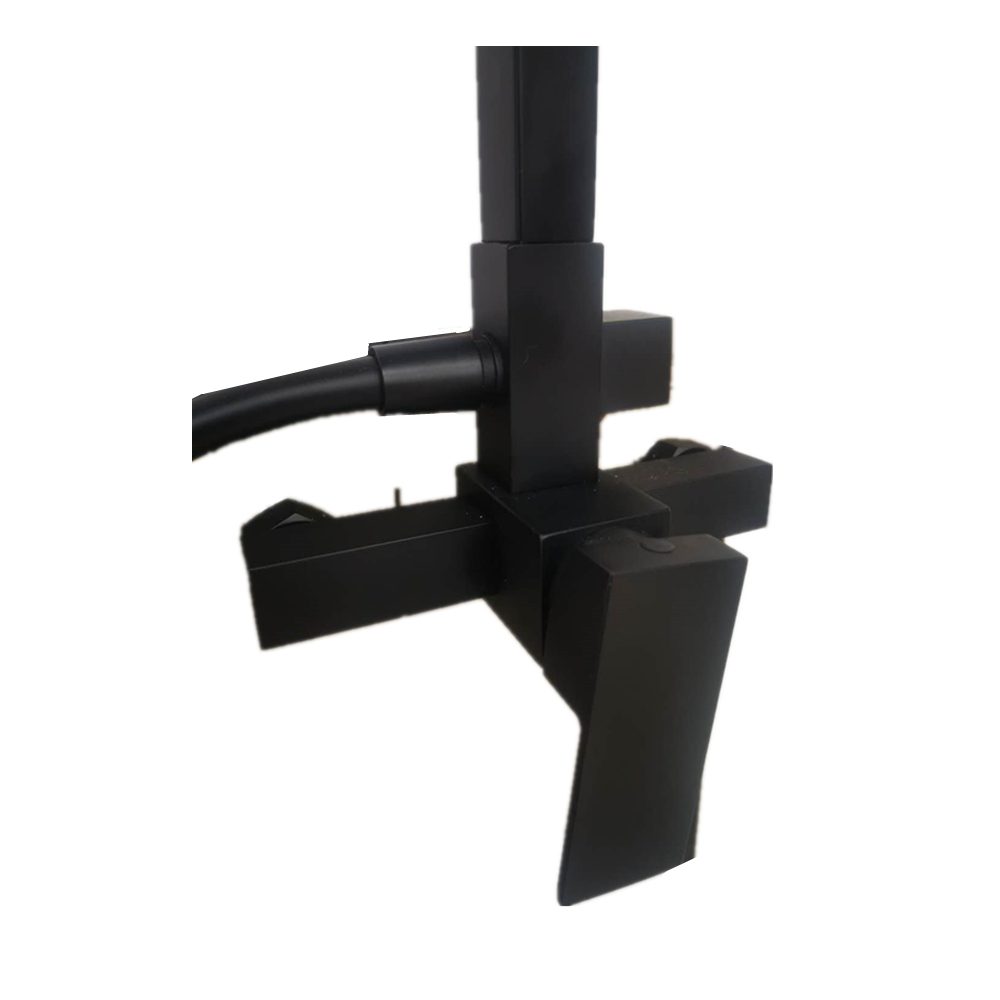

• All-in-One Integrated Mixer: The exposed bottom mixer houses a sleek single-lever temperature and flow control, plus a built-in diverter to seamlessly switch between the overhead rain shower and the handheld unit.
• Telescopic Adjustable Rail: The main shower rail is height-adjustable between 1060mm and 1250mm, ensuring the perfect overhead shower height for any bathroom ceiling or user.
• 8-Inch Rainfall Head: The generous 200mm square overhead shower provides a cascading, full-body wash.
• Versatile Hand Shower: Includes a matching square handheld shower on a smooth sliding bracket, making it easy to adjust the height and angle for targeted washing or easy cleaning.
• Bold Geometric Design: From the shower heads to the mixer and wall brackets, every component features sharp, architectural square lines for a cohesive, designer-inspired aesthetic.

Specifications

• Collection: Koda Series
• System Type: Exposed Shower System with Integrated Mixer
• Finish: Matte Black
• Profile: Square / Geometric
• Rainhead Size: 200mm x 200mm
• Inclusions: * 1 x Exposed Mixer
  • 1 x Adjustable Square Shower Rail
  • 1 x 200mm Square Rainfall Head
  • 1 x Square Handheld Shower & Flexible Hose

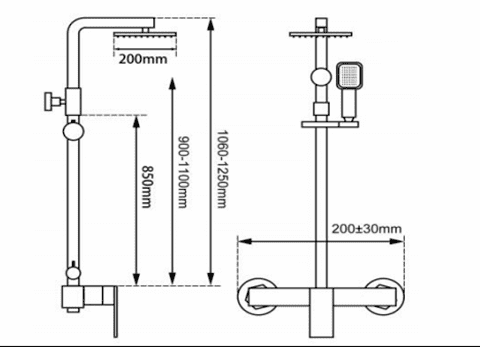

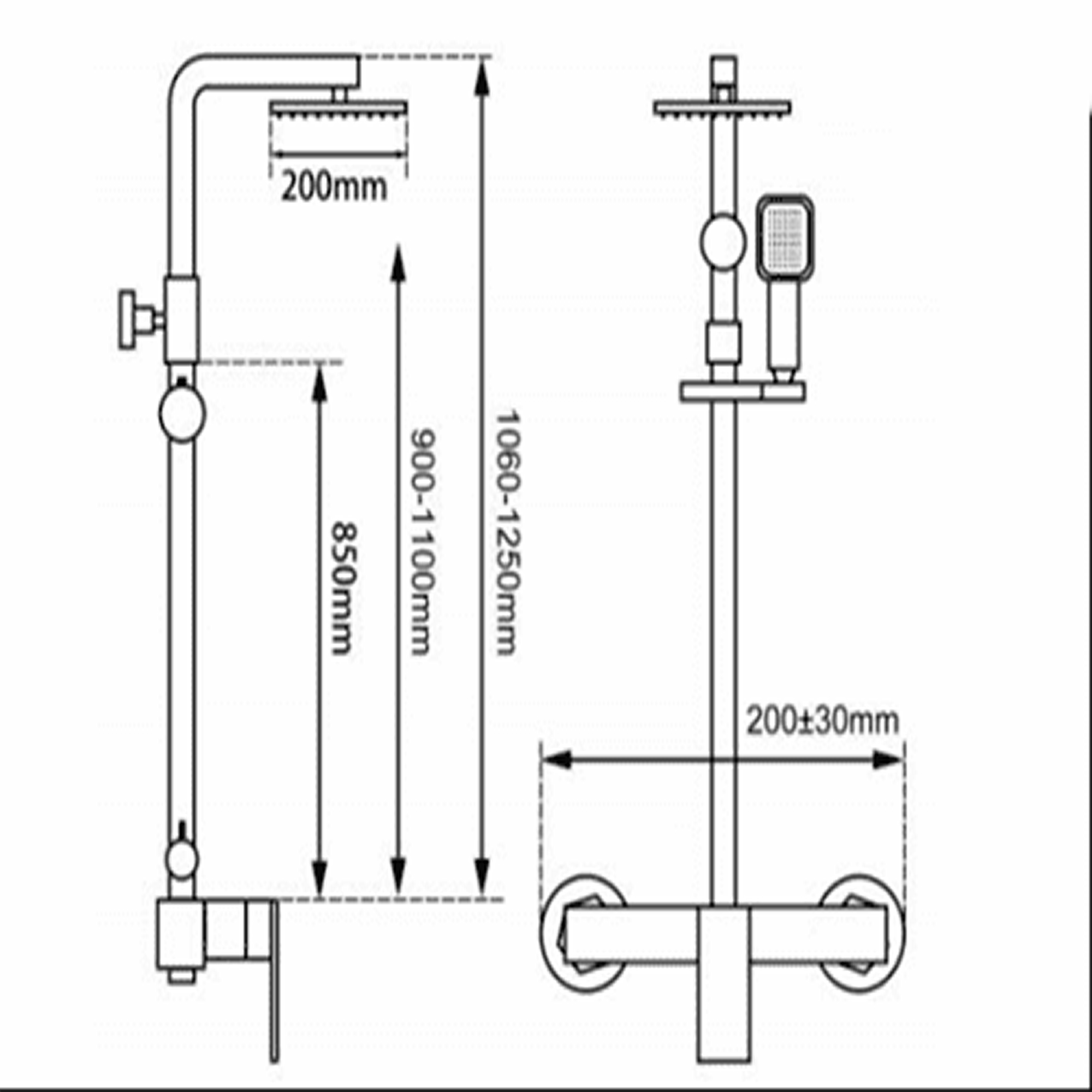

Installation Dimensions

• Overall Adjustable Height: 1060mm – 1250mm (From mixer to top of shower arm)
• Mixer Inlet Centers (Hot to Cold): 200mm (± 30mm adjustability)
• Top Bracket Mounting Height: Adjustable between 900mm and 1100mm from the mixer body
• Lower Arm Height: The horizontal shower arm sits 850mm above the mixer body
